Propel 470 HEV Electric Mining Tipper Price in India 2026, Battery, Range & Specs - TruckBusTravel

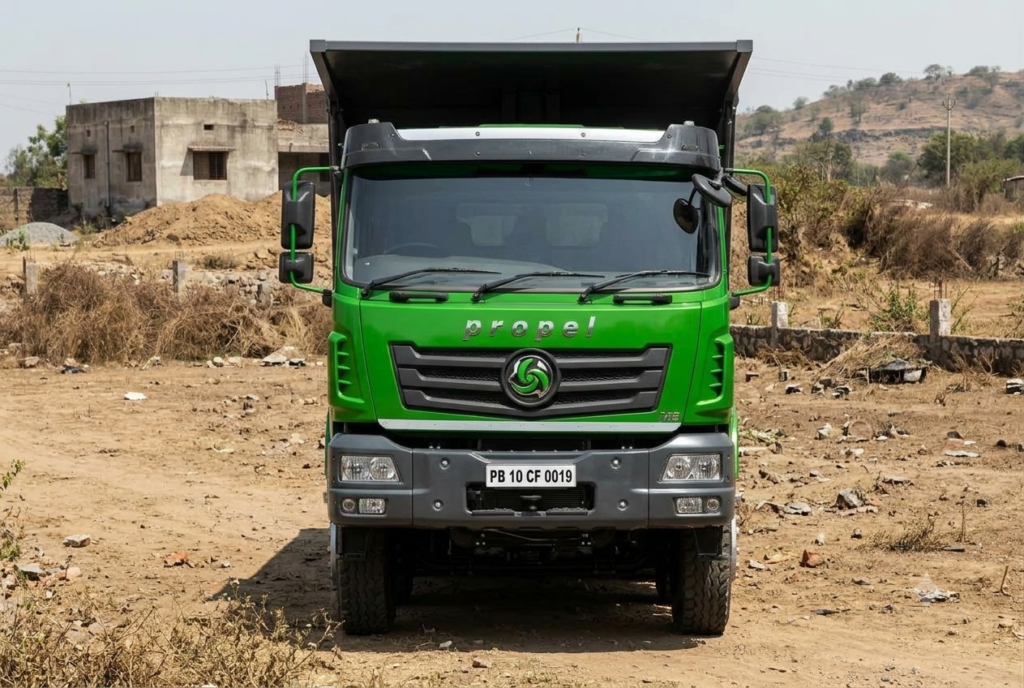

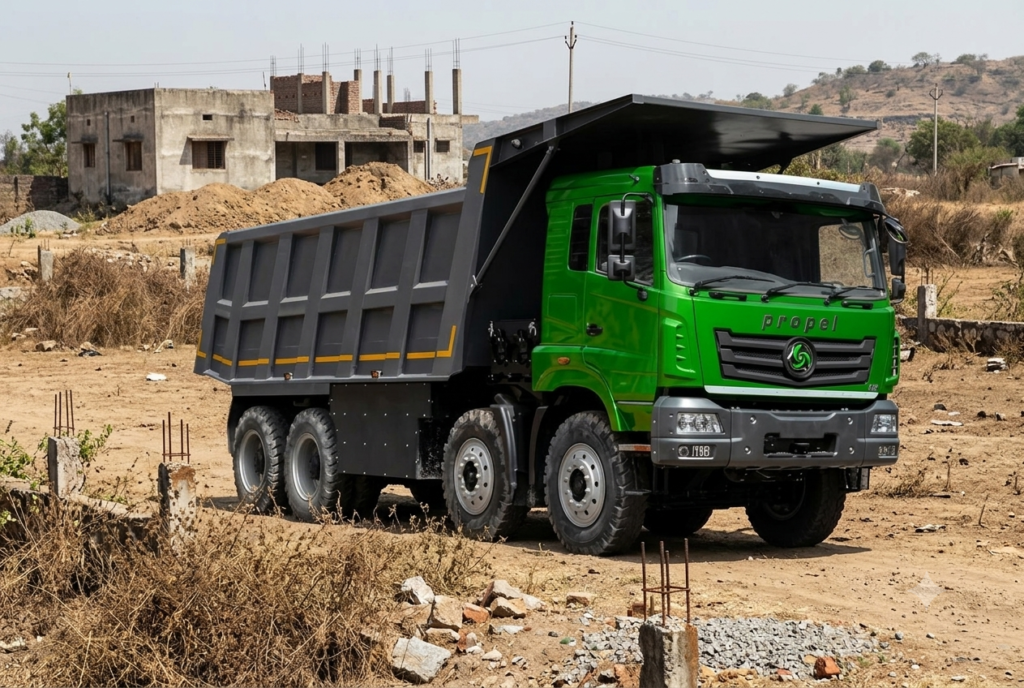

Propel 470 HEV Electric Mining Tipper – Price, Battery & Performance

Technical Parameter	Exact Vehicle Specification Details
Ex-Showroom Price	₹36.20 Lakh – ₹39.50 Lakh* (Rock Body & Coal Body Variants)
Estimated Taxes & RTO	Approx. 2% to 4% (Subsidized EV commercial heavy dumper permit charges)
Estimated On-Road Price	₹37.00 Lakh – ₹41.20 Lakh* (Includes insurance, RTO & local levies)
Gross Vehicle Weight (GVW)	55,000 Kg (55 Tonne Coal) / 60,000 Kg (60 Tonne Heavy Mining Rock)
Payload Capacity	30,500 Kg – 38,600 Kg (High density rock & coal payload carry)
Motor Type & Output	350 kW PMSM Motor (470 HP Peak Power / 2,800 Nm Peak Torque)
Battery Pack Capacity & Type	256 kWh / 385 kWh High-Safety Lithium-ion Pack (IP67 Water-Proof)
Certified Driving Range	Up to 180 Km per full charge (With Regenerative Braking System)
Fast Charging Time	Approx. 70 Minutes (Fast Dual CCS2 Charging Interface)
Transmission & Gearbox	7-Speed Clutchless Electro-Mechanical Automated Transmission (EMT)
Gradeability & Top Speed	>30% Gradeability for mining slopes \| Top Speed: 40 Km/h (Locked for safety)
Axle Setup	8×4 Configuration \| Front: 2×9.5T Heavy Duty \| Rear: 37T/48T Tandem Hub Reduction

Propel 470 HEV Electric Mining Tipper – Chassis, Body & FAQs

Technical Parameter	Exact Vehicle Specification Details
Dimensions (L x W x H)	9875 mm x 2800 mm x 3700 mm (Rock) / 10190 mm Length (Coal Variant)
Wheelbase & Ground Clearance	Wheelbase: 5900 mm / 6215 mm \| Ground Clearance: 265 mm – 305 mm
Dump Body Sizes	23 Cu.m Hardox Heavy Rock Body / 33 Cu.m High-Capacity Coal Body
Chassis Frame & Brakes	C-Channel Ladder Frame with Full Flitch Reinforcement \| Dual-Line Air Brakes with ABS
Suspension Setup	Front: Parabolic Leaf Springs with Shock Absorber \| Rear: 37T/48T Inverted Bogie Semi-Elliptical
Steering & Tyres (Size & Life)	Hydraulic Integral Power Steering (Tilt & Telescopic) \| Tyres: 12×20 / 12×24 Mining Tyres
Cabin, Interior & Climate	4-Point Air Suspended Sleeper Cabin, Air-Suspended Driver Seat, AC & Telematics
Who Should Buy?	Mining contractors, quarry operators, thermal power plant logistics & heavy infrastructure fleets.
Who Should Avoid?	Transporters looking for long-distance inter-state highway haulage trucks.
FAQ 1: Off-Road Application	Q: Is it suitable for deep mines? \| A: Yes, specially engineered for heavy off-road mining and rock excavation.
FAQ 2: Operating Cost Savings	Q: How much diesel cost does it save? \| A: Reduces fuel and running expenses drastically compared to conventional diesel tippers.
FAQ 3: Seating Layout	Q: What is the cabin capacity? \| A: Driver + 1 Passenger (D+1) air-conditioned sleeper cabin setup.
FAQ 4: Warranty	Q: What is the battery warranty? \| A: Comes with dedicated multi-year manufacturer EV battery & drivetrain warranty.
