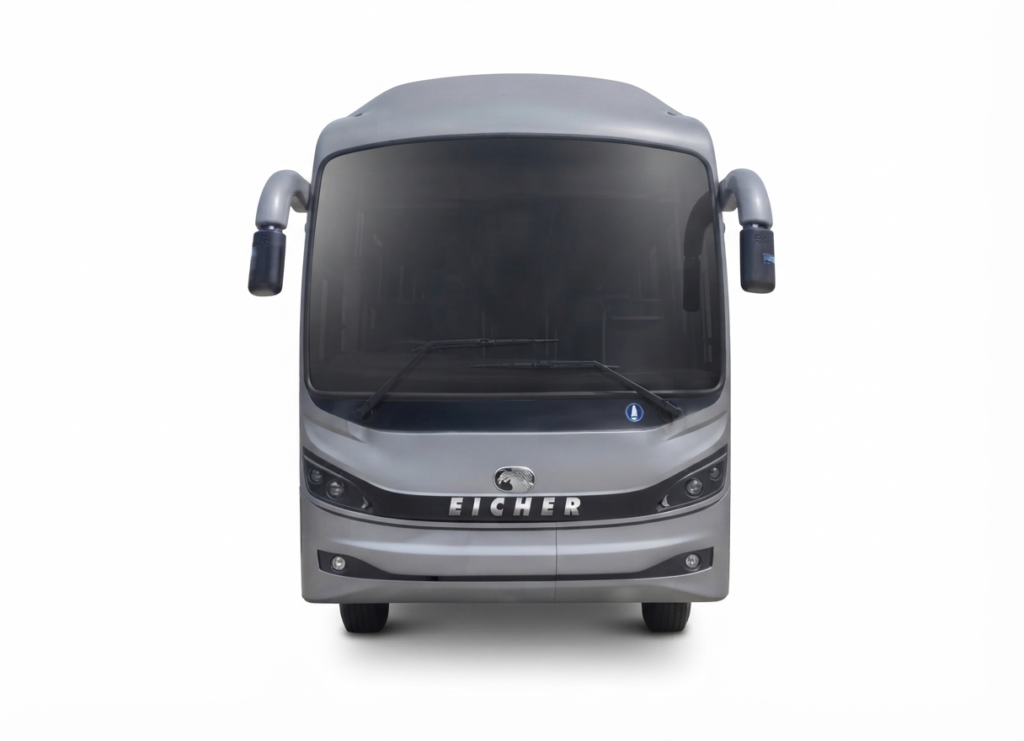

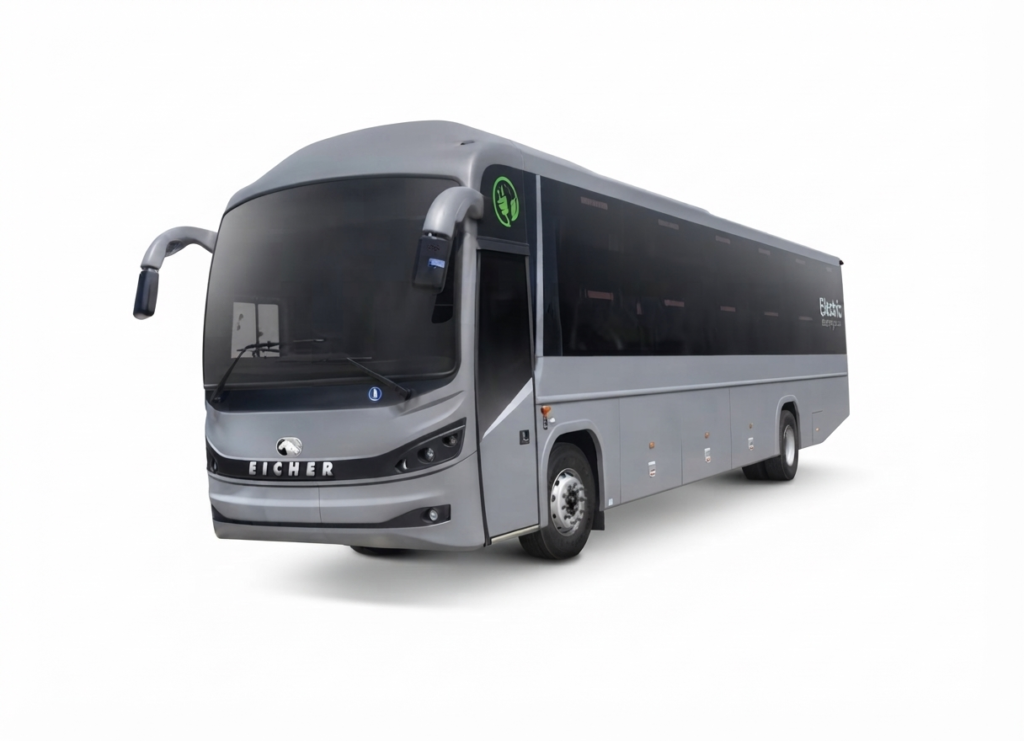

Eicher Skyline Pro E 13.5m Intercity Electric Bus – Technical Specifications & Price
Technical ParameterVehicle Specification Details
Estimated Ex-Showroom Price₹42.00 Lakhs onwards (Varies across states/cities)
Taxes & On-Road PriceEstimated ₹44.50 Lakhs to ₹47.00 Lakhs (Inc. RTO, Insurance & EV subsidies)
Gross Vehicle Weight (GVW)19,500 Kg (19.5 Tonnes Heavy Duty)
Motor & Power OutputPermanent Magnet Synchronous Motor (PMSM) | 235 kW Power
Torque & Transmission3,216 Nm Torque | Heavy-Duty Automatic Direct Drive Transmission
Battery Pack & Chemistry399.36 kWh High-Density LFP (Lithium Iron Phosphate) Battery
Driving Range & Charging250–330 Km per charge | DC Fast Charging (1.5 to 2 Hours)
Chassis Type & BuildHeavy-Duty Integral Bus Chassis Frame | Fully Built Coach
Chassis DimensionsLength: 13,480 mm | Width: 2,590 mm | Height: 3,885 mm
Wheelbase & Turning RadiusWheelbase: 7,050 mm | Turning Circle Diameter (TCD): 23 Meters
Suspension SystemAdvanced Pneumatic Air Suspension (Front & Rear) with ECAS
Brakes & SafetyDisc Brakes on all wheels, ABS, Regenerative Braking & Hill Assist
Tyres & SizeHeavy-Duty Tubeless Radial Tyres | Size: 295/80 R22.5
Tyre Life & MaintenanceApprox. 80,000 to 1,20,000 Km (Optimized via uniform load distribution)
Lighting & SeatingFull LED Headlamps & Tail Lamps | 36+D Sleeper or 52+D Seater Layout
EMI Calculator
Eicher skyline pro e 13.5m
Eicher Skyline Pro E 13.5m Intercity – Charging, Mileage & Maintenance Guide
Operational ParameterPerformance & Cost Breakdown
Battery Charging Time (0% to 100%)Approx. 1.5 to 2.5 Hours using High-Capacity DC Fast Charger (120 kW+)
Charging Time (20% to 80% Booster)Approx. 45 to 60 Minutes on En-route DC Fast Chargers
Real-World Mileage (Energy Efficiency)1.2 to 1.4 kWh per Kilometer (Depending on AC usage, traffic & payload)
Real-World Driving Range260 Km to 310 Km on a single full charge in actual intercity conditions
Electricity Consumption CostApprox. ₹12 to ₹15 per Km (Significantly lower than diesel buses running at ₹25+/Km)
Routine Maintenance CostVery Low: No engine oil, clutch, or gear oil changes required (Saves up to 40% vs diesel)
Overall Maintenance (Per Km Basis)Approx. ₹2.50 to ₹3.50 per Km (Including brake pads, tyre rotation & periodic EV checks)
