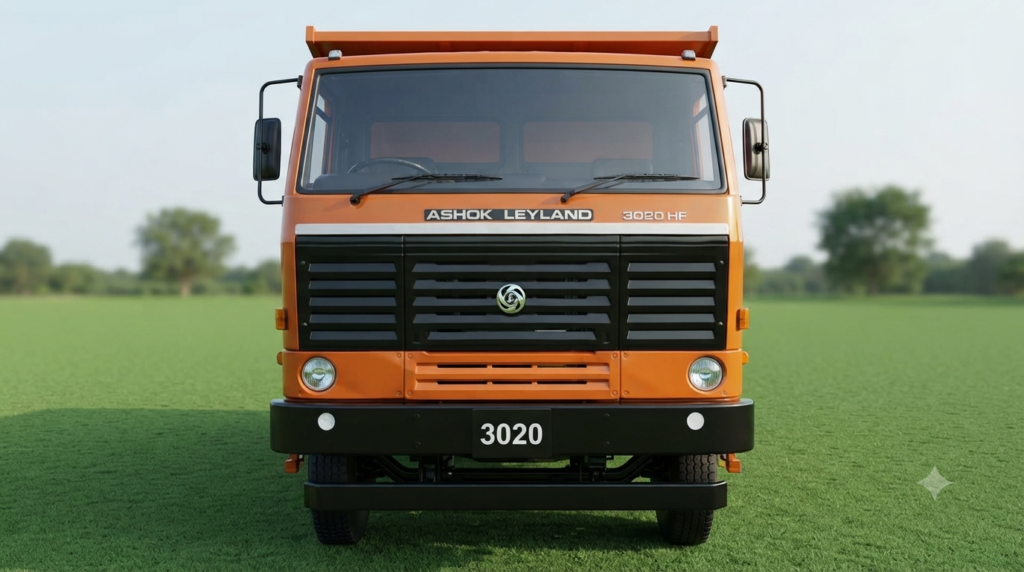

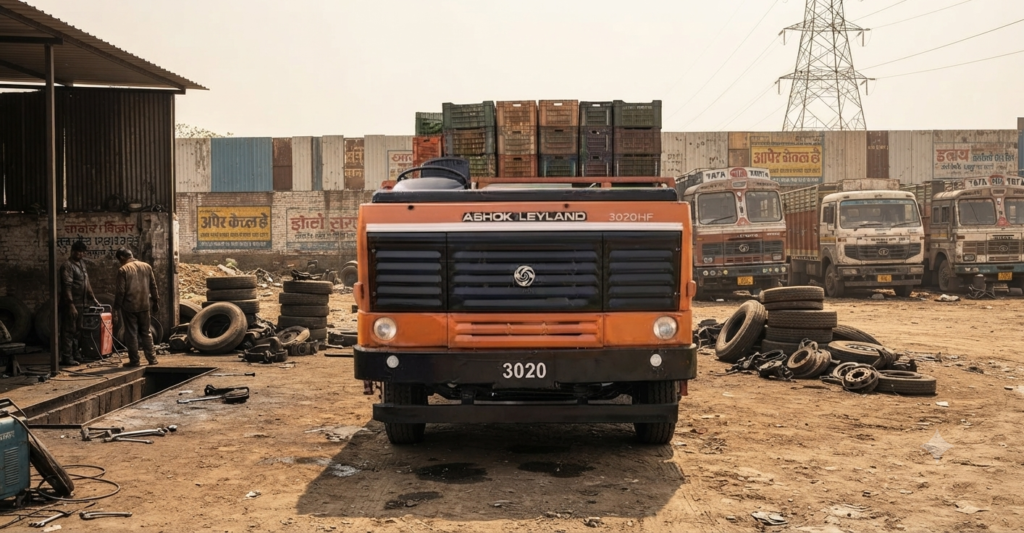

| Ashok Leyland AVTR 3020 (10-Wheeler) — A to Z Technical Specs | |
|---|---|
| Powertrain & Engine Performance | |
| Engine Model | H Series 6-Cylinder CRS with i-Gen6 Technology |
| Engine Displacement | 5660 cc |
| Maximum Power | 200 HP @ 2400 RPM |
| Peak Torque | 700 Nm @ 1200 – 2000 RPM |
| Cylinder Count | 6 Cylinders, In-line Configuration |
| Transmission Setup | 6-Speed Manual Synchromesh Gearbox (6 Forward + 1 Reverse) |
| Battery Box Setup | 24V System | 120 Ah Heavy-duty Commercial Battery |
| Chassis Framework & Suspension | |
| Chassis Type | High-Tensile Steel Modular Ladder Frame (AVTR Platform) |
| Chassis Dimensions | Customizable Span | Loading Spans from 24 feet to 32 feet |
| Front Suspension | Semi-Elliptical Multi-leaf Springs (Optional Shock Absorbers) |
| Rear Suspension | NRS (Non-Reactive Suspension) / Bogie Suspension options |
| Tyre Configuration & Fleet Capabilities | |
| Tyre Size & Rating | 295/90 R20 – 16 PR (Ply Rating) Heavy-duty Radials |
| Wheel Configuration | 10 Wheels Setup (Front: 2, Rear Dual Axles: 8 + 1 Spare) |
| Average Tyre Life | 80,000 to 95,000 Kilometers (Standard Highway routes) |
| Commercial Pricing Metrics | |
| Real Ex-Showroom Price | Starts from ₹31.50 Lakh onwards (Base Chassis Variant) |
| Estimated Taxes | RTO Registration, National Permit Charges, Comprehensive Insurance & Green Tax |
| Estimated On-Road Price | ₹35.50 Lakh – ₹39.00 Lakh (Approximate estimate range) |
| Note: Yeh estimated price hai, real price nahin hai. Price aur taxes har state aur body variant ke according vary karti hai. | |
| Ashok Leyland 3020 — Body & Cost Quick Facts | |
|---|---|
| Cabin & Interior Layout | |
| Cabin Options | Factory-built M-Cabin / U-Cabin |
| Dashboard & Steering | Digital Cluster | Tilt & Telescopic Power Steering |
| Seats & Space | 4-Way Adjustable Driver Seat + Wide Sleeper Berth |
| Body Structure | |
| Build Quality | High-Tensile Steel | Anti-Corrosive Primer Coating |
| Cargo Options | HSD (High Side) | FSD (Fixed Side) | DSD (Drop Side) |
| Capacities & Earning Metrics | |
| GVW / Payload | 30,000 kg GVW | ~20,000 kg Legal Payload |
| Fuel Tank Capacity | 300 L / 375 L Polymer Tank |
| Full Load Mileage | 3.5 to 4.5 km/l (Real-world highway runtime) |
| Maintenance Cost | ₹4.00 to ₹5.50 per Kilometer |
| Total Fabricated Pricing (Estimated) | |
| Fabrication Cost | ₹2.50 Lakh – ₹4.50 Lakh (Workshop dependent) |
| Total Vehicle Cost | ₹38.50 Lakh – ₹43.50 Lakh (On-Road Full Body Built) |
